2. Land Of The PEB - Running from the debugger

2025-03-26 1087 words 6 minutes

Contents

Welcome to the second installment of “Land Of The PEB”. Last post we talked about what the PEB was and some ways it could be used to ones advantage. You can’t run from it trust me.. You can find it in your nearest neighborhood even the one you’re using to read this post (If you’re on windows), but one thing we may be able to run from is the debugger. Using the PEB for Anti-Debugging purposes is a fairly known technique but don’t let that fool you it’s still a good thing to know.

“You must learn to walk before you can run”

So.. you wan’t to learn how to detect debuggers? There are a couple of ways to do so the two simplest ways I’ve found are:

Check the BeingDebugged member in the PEB
Check NtGlobalFlag in the PEB (To see if the process was created by a debugger)

these two don’t do much justice compared to other Anti-Debugging methods but they sure are robust. We will start with the second method first. If you’ve followed my previous post you should already have some way of getting a pointer to the PEB so I will be going off that. I will be doing this in C/ASM.

Here is my assembly code to get a pointer to the PEB ¹


get_peb:
    push rdi
    mov rdi, rsp
    sub rsp, 0x20
    xor rax, rax
    mov rax, gs:[0x60]
    mov rsp, rdi
    pop rdi
    ret

Running to the (NtGlobal)Flag

Before we move on we should talk about what NtGlobalFlag is and how we can get to it.

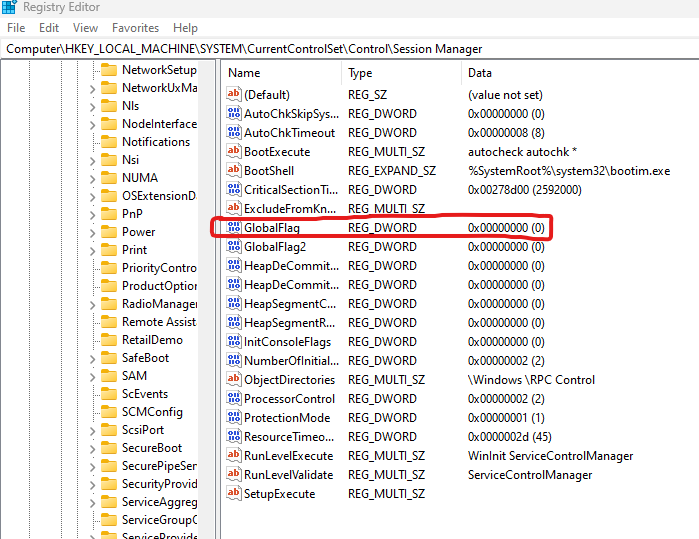

In the windows registry we can see that the “GlobalFlag” key’s value is set to 0 This tells us that this is the default value.

This can be confirmed by starting any process like notepad.exe, attaching a debugger to it and looking at the NtGlobalFlag in the PEB. Notice how I said to start a process then attach, it will make much sense later.

Once notepad is open click “attach” in x64dbg and find notepad.exe in the list of processes.

Once you’re in x64dbg hit run until notepad is fully functional. This should look familiar, we are going to index 0x60 bytes into the TEB (gs) using this command.

mov rax, gs:[0x60]

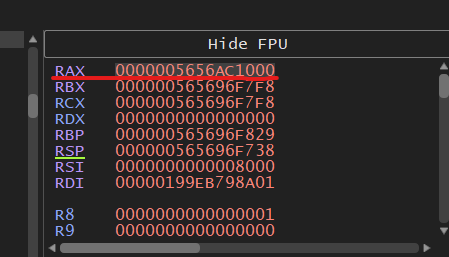

Now the address of the PEB should be in the RAX register.

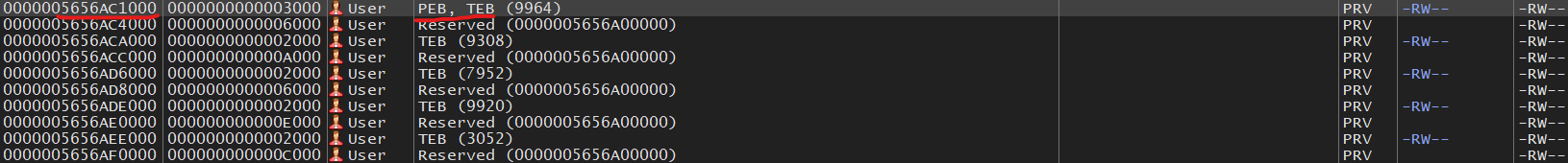

Can be confirmed if you right click on that address in the RAX register and click “Follow in Memory Map”

With this pointer we can grab the NtGlobalFlag value in the PEB which is at offset 0xBC on 64-bit systems with this command.

mov al, [rax+0xBC]

If you followed correctly earlier, the value in the RAX register should NOT change due to the fact that the notepad process was not created by a debugger we only started notepad and then attached the debugger to it.

Now we will write a small program to check this flag and we will start it with a debugger. ²

    ... snip ...

    xor rax, rax
    mov rax, gs:[0x60]

    mov al, [rax+0xBC]
    and al, 0x70
    cmp al, 0x70
    jz goodbye
    xor rax, rax

    ... snip ...

goodbye:
    xor rax, rax
    add al, 1
    mov rsp, rdi
    pop rdi
    ret

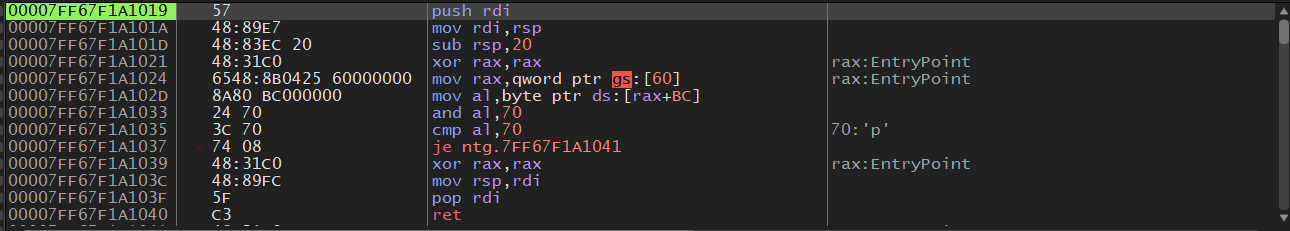

Once the binary is loaded into x64dbg we can see our function

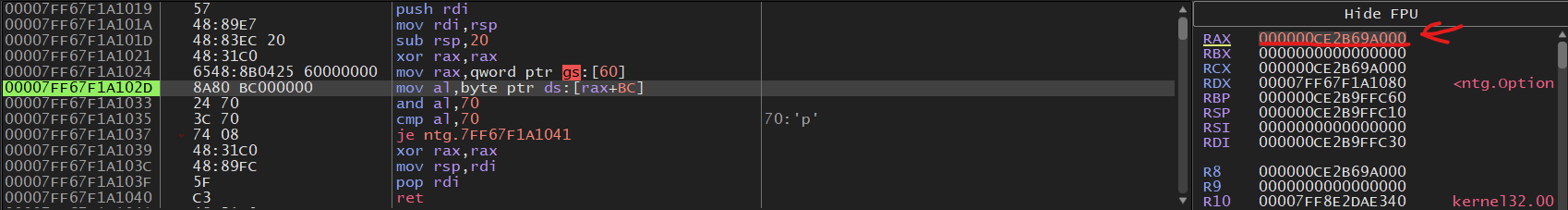

Right before we execute the instruction mov al,byte ptr ds:[rax+BC] we can see again that a pointer to the PEB is in the RAX.

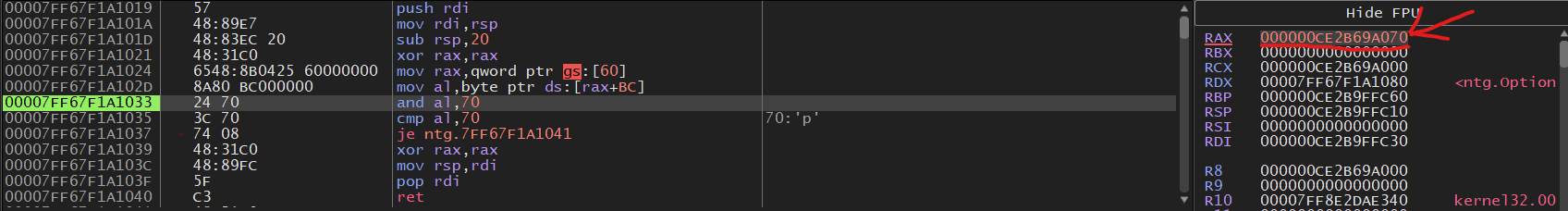

After that instruction is executed we can see that the al register changed which is the lowest byte of the RAX register it is now 0x70 why?

This is because when a process is created by a debugger three flags will be set:

FLG_HEAP_ENABLE_TAIL_CHECK = 0x10
FLG_HEAP_ENABLE_FREE_CHECK = 0x20
FLG_HEAP_VALIDATE_PARAMETERS = 0x40

It’s a good idea to check against these flags explicitly because just checking if NtGlobalFlag is not 0 shouldn’t mean there is a debugger running. In short we should only check for a combination of ALL of these flags 0x70 to prevent false positives.

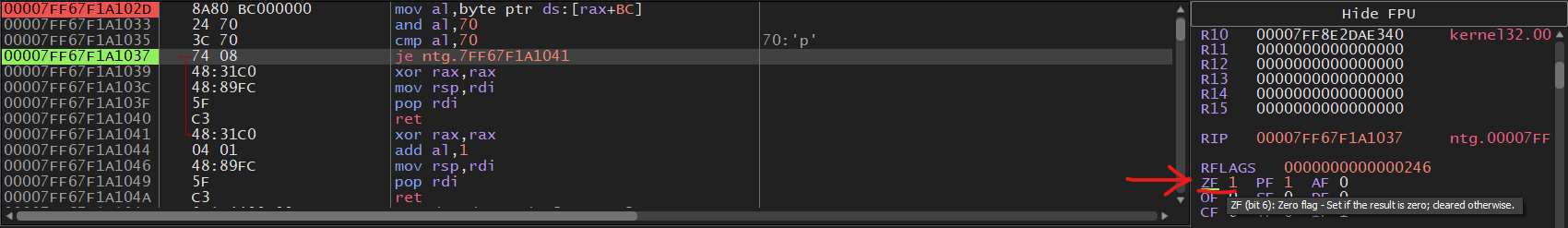

Once that value is saved into the al register we do a bitwise AND on 0x70 and al, then we compare al and 0x70 to check if the combination of flags are set. We can see that after we execute cmp al, 0x70 the Zero flag (ZF) gets set (if the result of an operation is zero the Zero flag gets set to 1) this means that the value of NtGlobalFlag, was equal to 0x70. that most likely means this process was created by a debugger (we know it was).

I hate Being (De)bugged!!

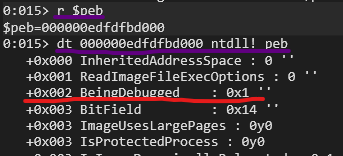

The good ol’ BeingDebugged if the last technique was too much for you, this is one of the most trivial Anti-Debugging techniques out there. The BeingDebugged member of the PEB is used to check if the current process is being debugged or not. We can be see it in WinDbg using two commands r $peb -> dt [address] ntdll!_peb

We can see that it’s located at offset 0x02 and the value is set to 0x1 (true). With this information we can write a function to do this for us.

I’m going to stick to ASM because I think it’s good practice, we know we must do two things:

Get a pointer to the PEB
Get the BeingDebugged value

    ... snip ...

    mov rax, gs:[0x60]  // You should know this by now
    mov al, [rax+0x02]  // Grabbing the BeingDebugged value
    and rax, 0x000000FF // Clearing out everything except for al

    ... snip ...

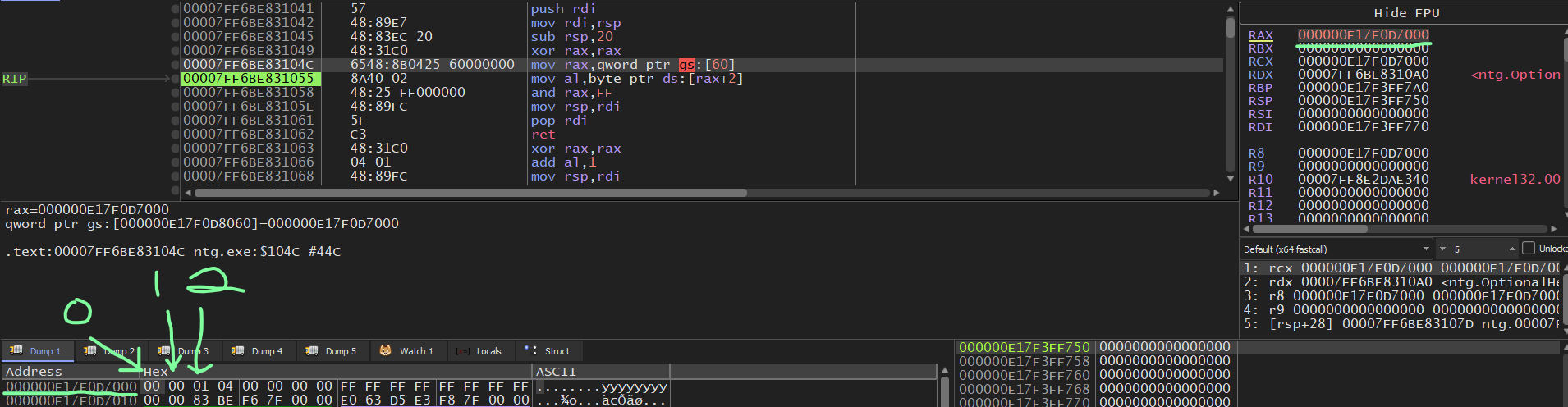

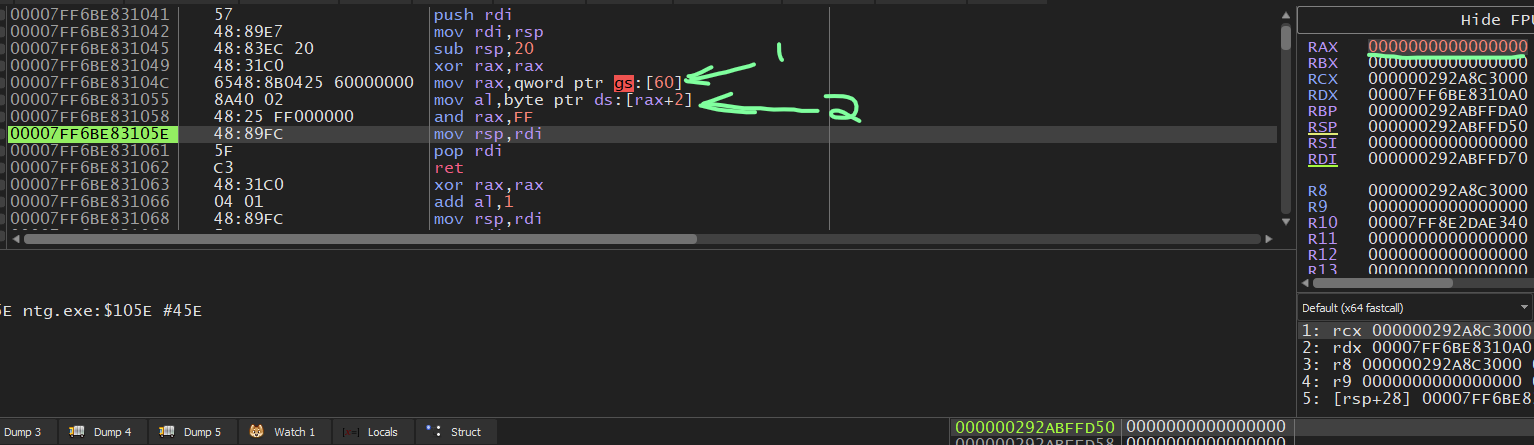

Back to x64dbg! Again right after we execute the instruction mov rax,qword ptr gs:[60] we can see that a pointer to the PEB is in the RAX. If we right click on this address in RAX and select “Follow in Dump” we can see there’s an 0x1 two bytes in

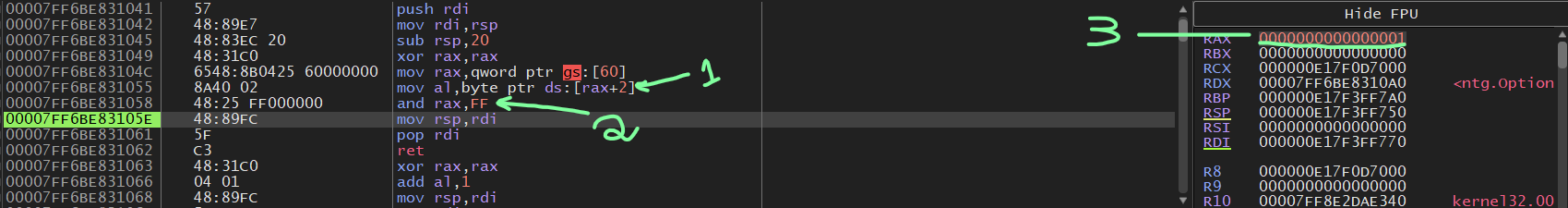

Stepping two more times does the following:

Moves the BeingDebugged value to the al register
Clears the remaning bits except the lowest 8
After these steps RAX should contain 0000000000000001

Remarks

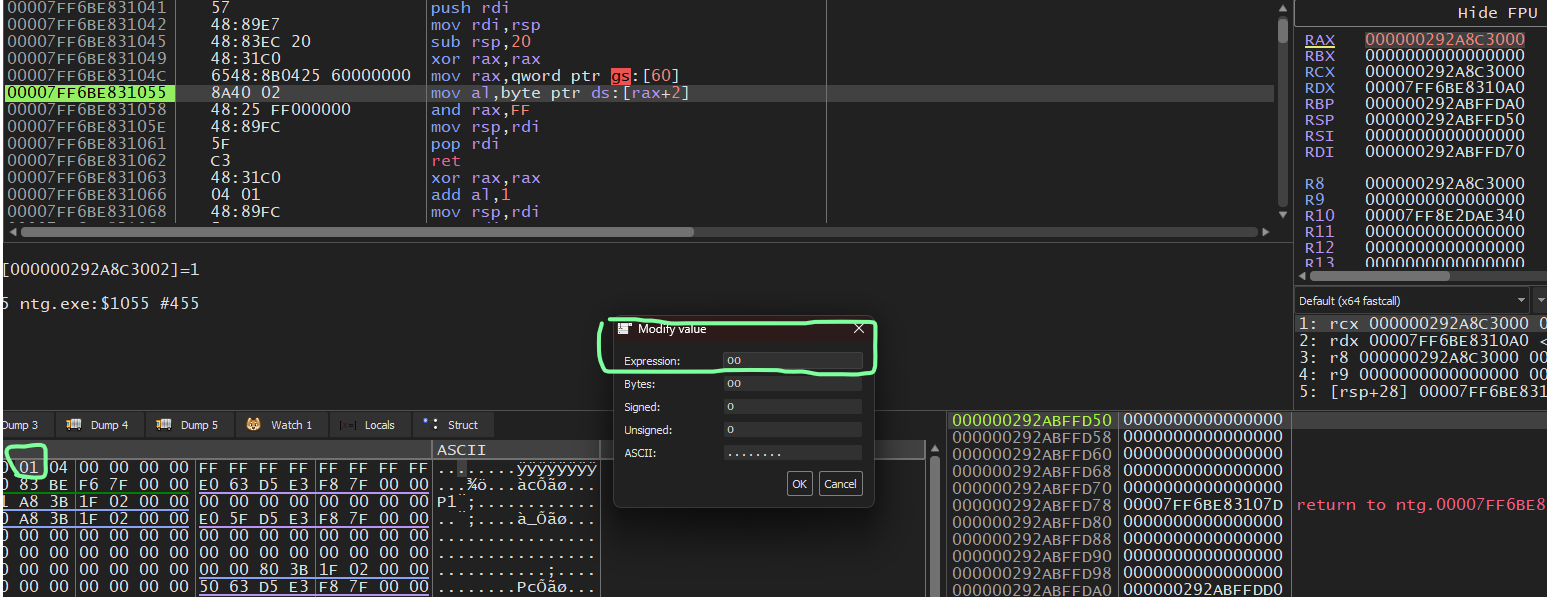

Those were two ways malware may detect if it’s being debugged there are numerous ways to do so. If you’re doing malware analysis It should also be known that these two methods can easily be bypassed by simply changing the values to 0 in memory before they are accessed, like so.
